- SECURE WIRED CONNECTIVITY: USB C to Gigabit Ethernet Adapter allows you to connect to a GbE Network from a USB-C/Thunderbolt 3 Laptop incl. Apple MacBook/MacBook Pro, Microsoft Surface, & HP EliteBook
- TECH SPECS: USB-C 3.0 or TB3
- 1x RJ45
- 1 Gbps
- 10/100/1000 Mbps Auto-Negotiation
- Realtek RTL8153
4+
StarTech.com USB-C to Gigabit Ethernet Adapter - USB 3.0 - USB 3.0 Type C ASIX - AX88179 - 1 Port(s) - 1 - Twisted Pair - 10/100/1000Base-T - Desktop
StarTech.com USB-C to Gigabit Ethernet Adapter - USB 3.0 - USB 3.0 Type C ASIX - AX88179 - 1 Port(s) - 1 - Twisted Pair - 10/100/1000Base-T - Desktop
Product Details
General Information
| Weight (Approximate) | 1.90 oz |
| Total Number of Ports | 1 |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 1 |
| Device Supported | Computer/Notebook/Tablet |
| Host Interface | USB 3.0 Type C |
| Form Factor | Desktop |
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| VLAN tagging | Yes |
| Internal | No |
| Product colour | Black |
| Chipset | Realtek - RLT8153 |
| LED indicators | Activity, Power |
| Certification | CE, FCC, REACH |
| USB powered | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 141 mm |
| Depth | 175 mm |
| Height | 13 mm |
| Weight | 58 g |
| Package width | 141 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 265 mm |
Product Information
| Brand | StarTech |
| Type | Hubs & Switches |
Description

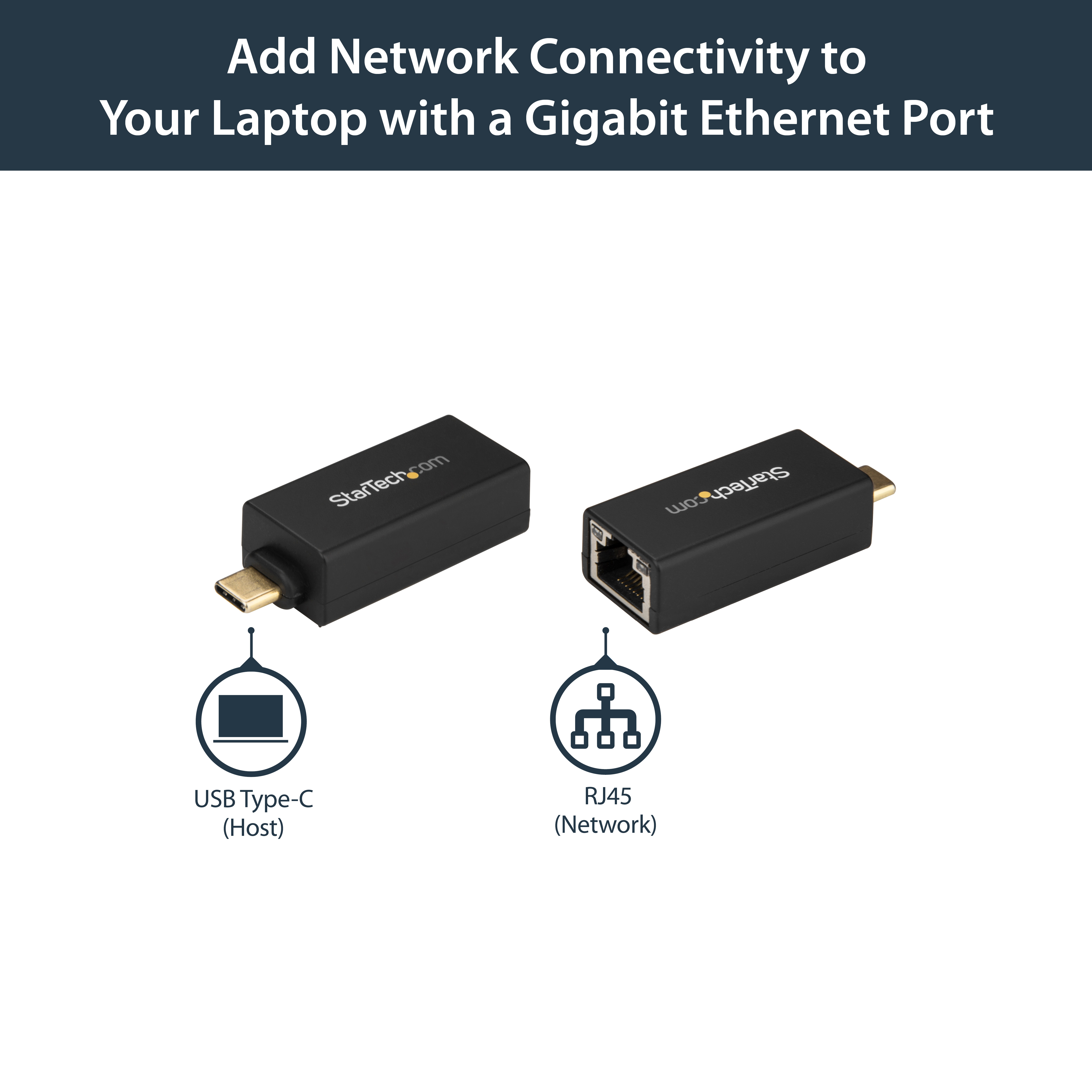

Connect to a Gigabit Ethernet network through your computer’s USB-C port
This USB-C™ to Gigabit Ethernet adapter lets you connect easily to a wired Ethernet network, with full Gigabit bandwidth support, through the USB-C or Thunderbolt™ 3 port on your laptop, tablet or desktop computer.
Powerful Gigabit network connections
The USB Type-C™ to Gigabit Ethernet adapter adds a single RJ45 Ethernet port with Gigabit support, by harnessing the performance of USB 3.0, also known as USB 3.1 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds. Support for features such as jumbo frames, VLAN tagging and Wake-on-LAN (WOL), provides versatile Gigabit network performance for business or home office use.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The network adapter chipset provides native driver support for the latest versions of Windows , macOS, Linux , and Chrome OS™, providing easy setup.
Designed for portability

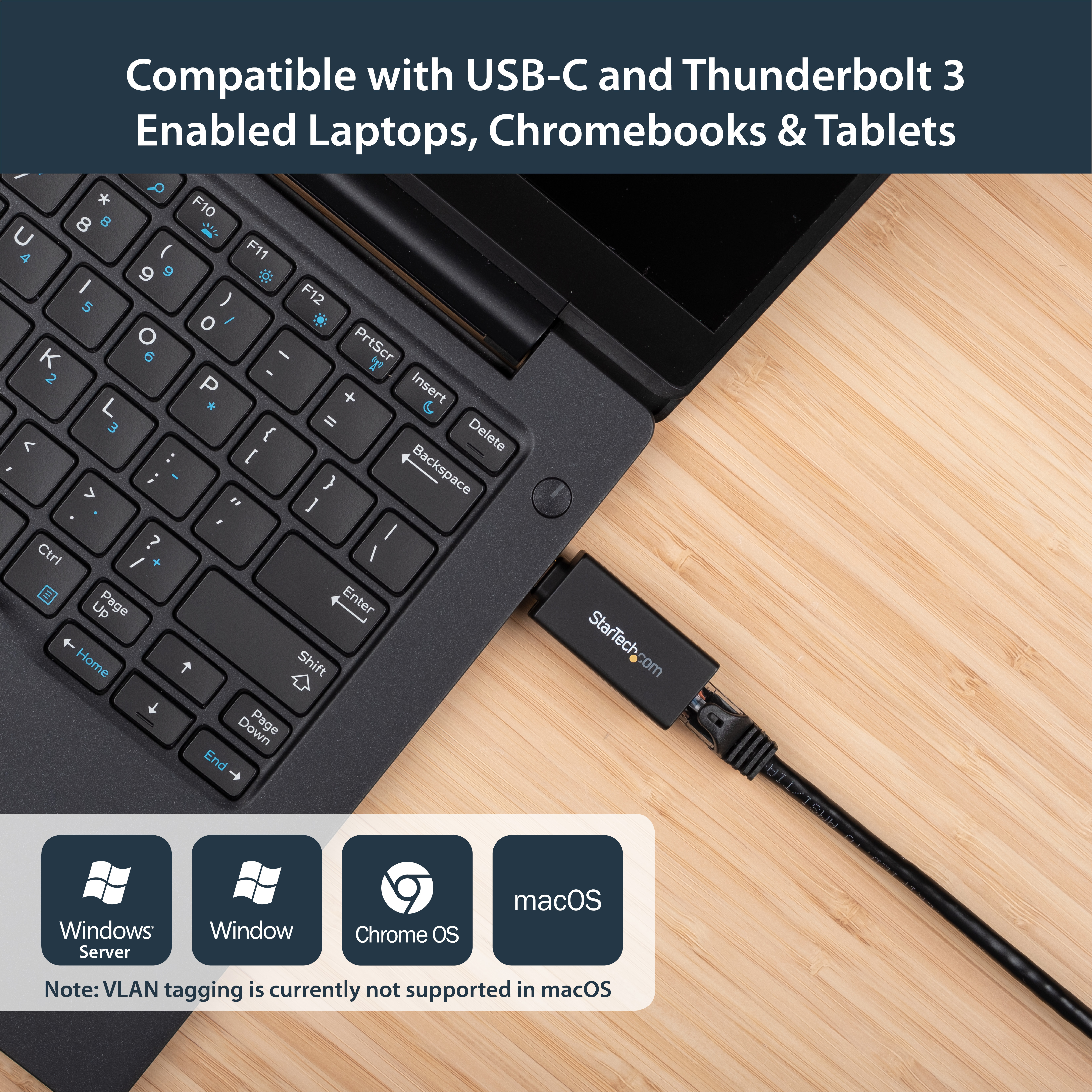

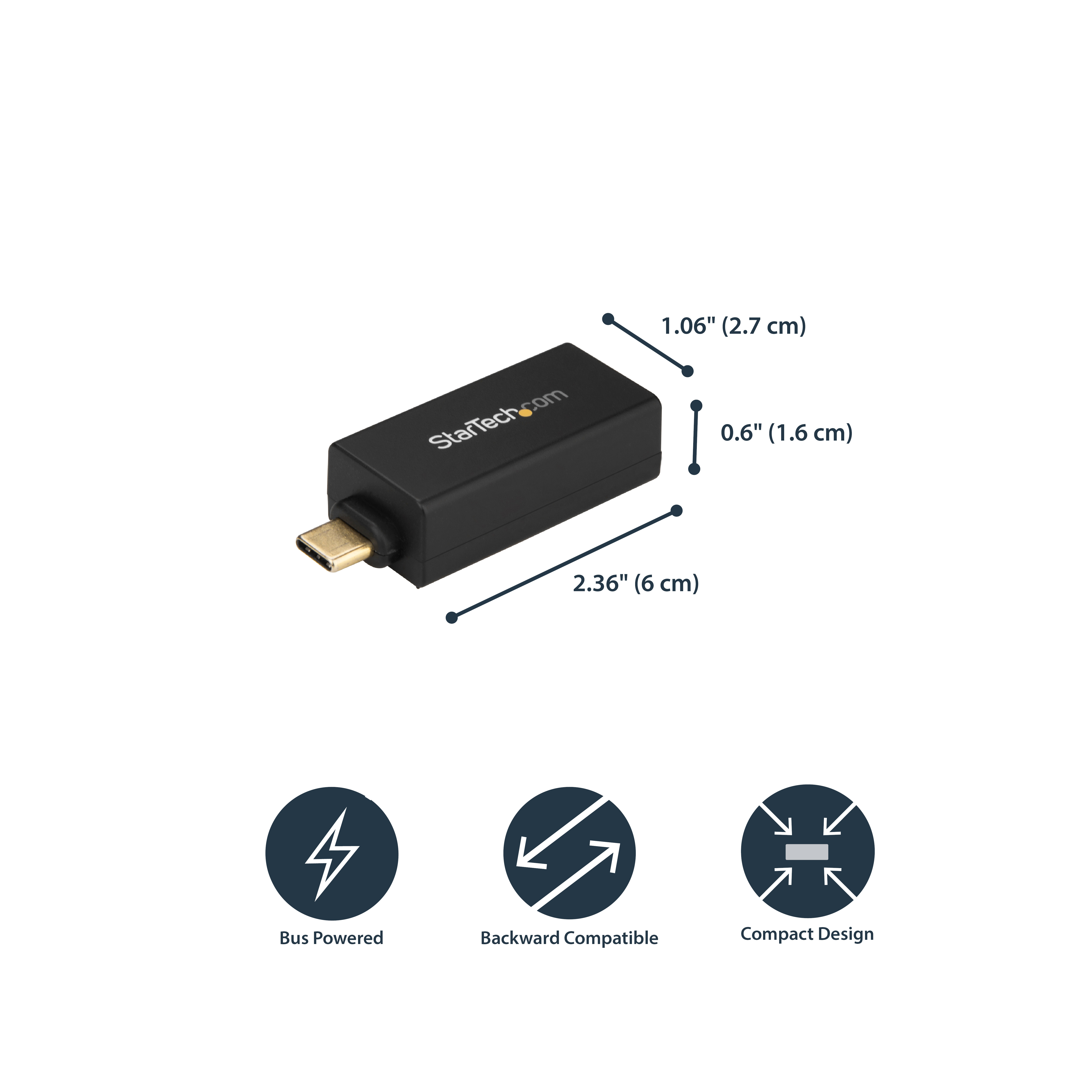

Compact, lightweight and with a cableless design, this portable USB Gigabit network adapter is the ideal accessory for your MacBook Pro, Dell™ XPS or other USB-C enabled laptop or desktop computer. It’s powered directly from the USB port, making it easy to connect when you’re on the go.
The US1GC30DB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
